Project started as adding beams to support and existing roof to take bearing walls out to create more open spaces in the existing house. Mid project decided to actually remove a portion of roof to vault the Great Room area!
Project started as adding beams to support and existing roof to take bearing walls out to create more open spaces in the existing house. Mid project decided to actually remove a portion of roof to vault the Great Room area!

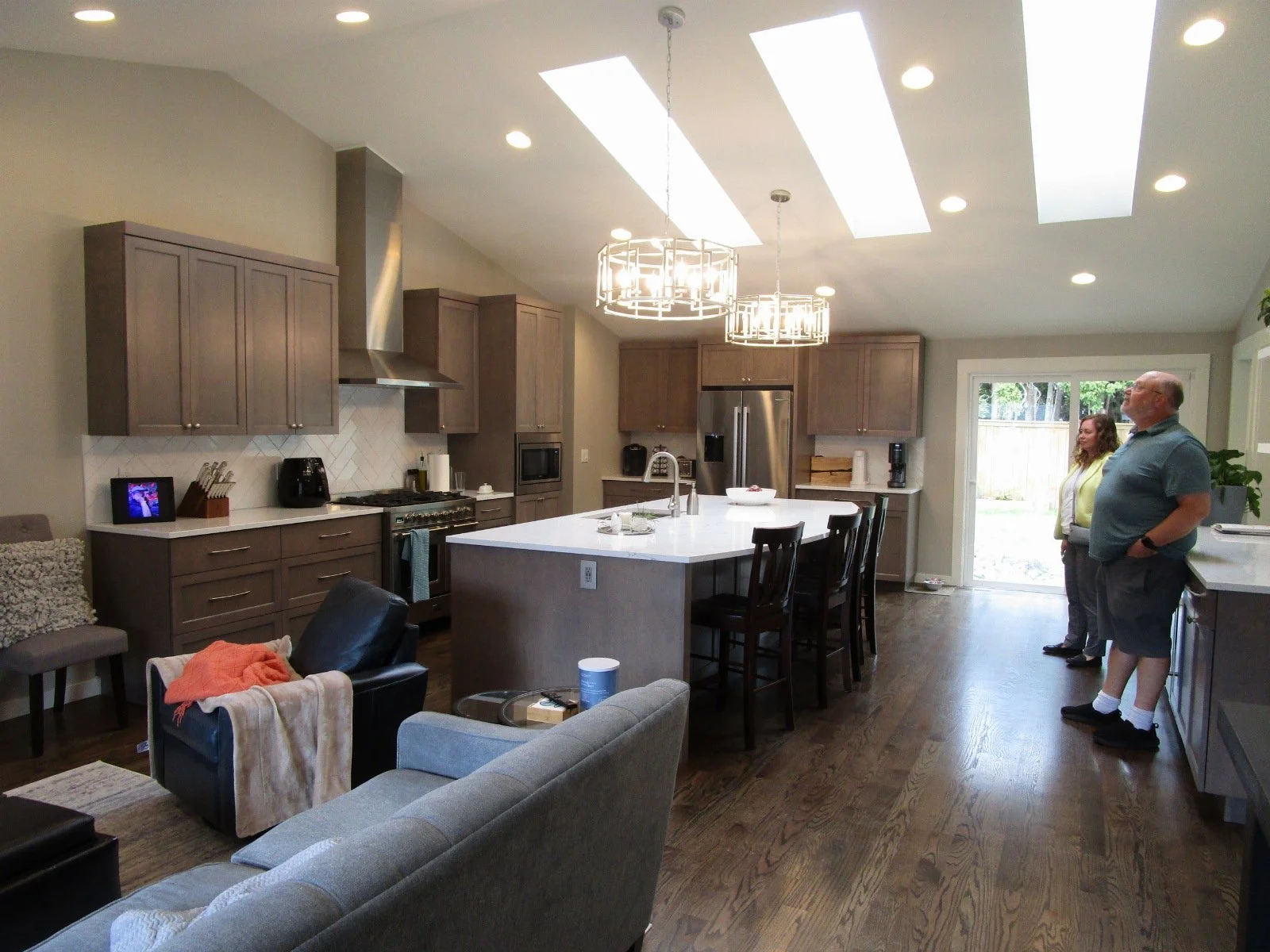

Great Room just about finished.
Before work starts. This wall is one of a few that will come out to open up the area.
Before work starts.... this area gets blown up too!

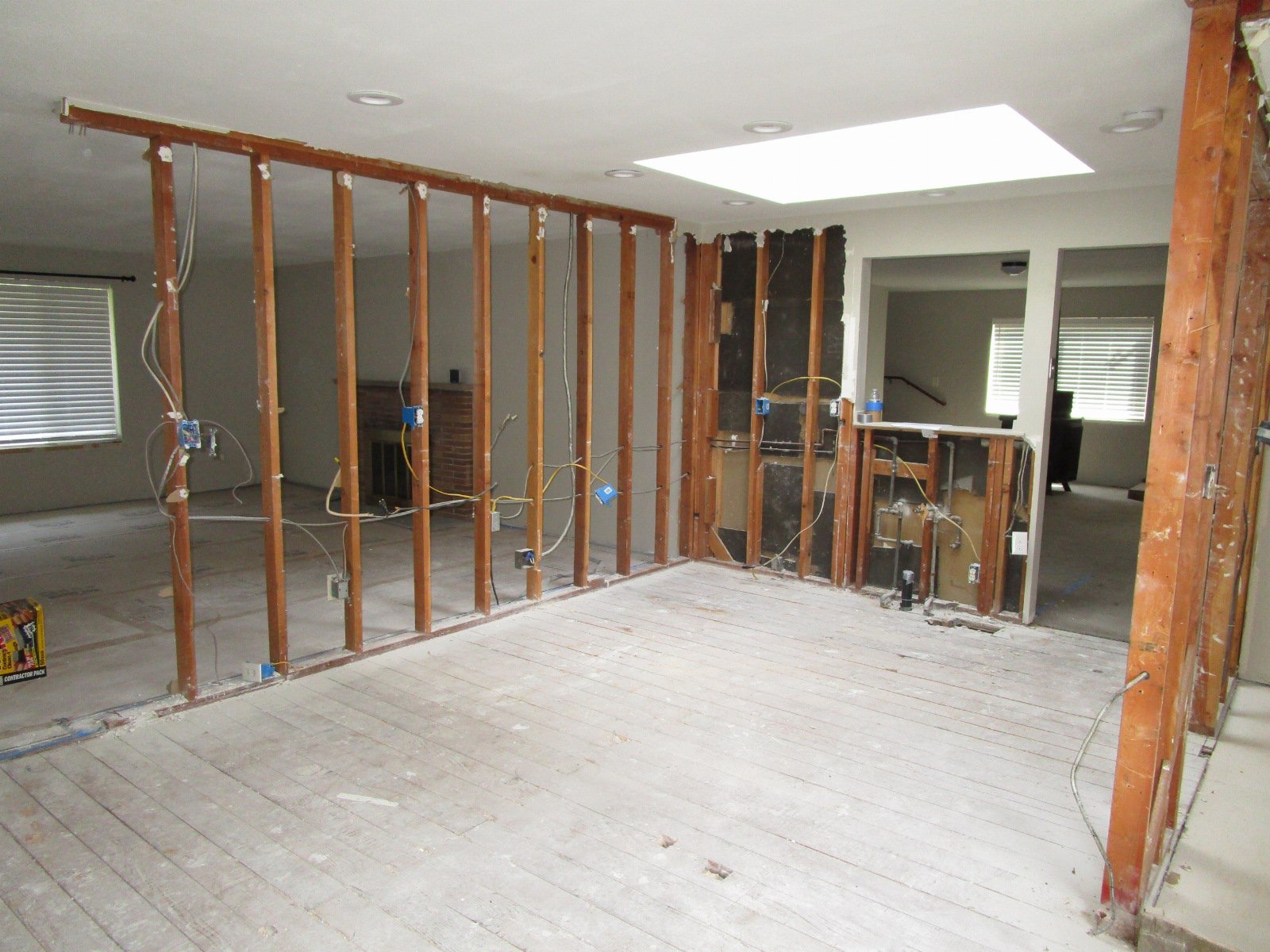

Demo has started. Old kitchen gone.

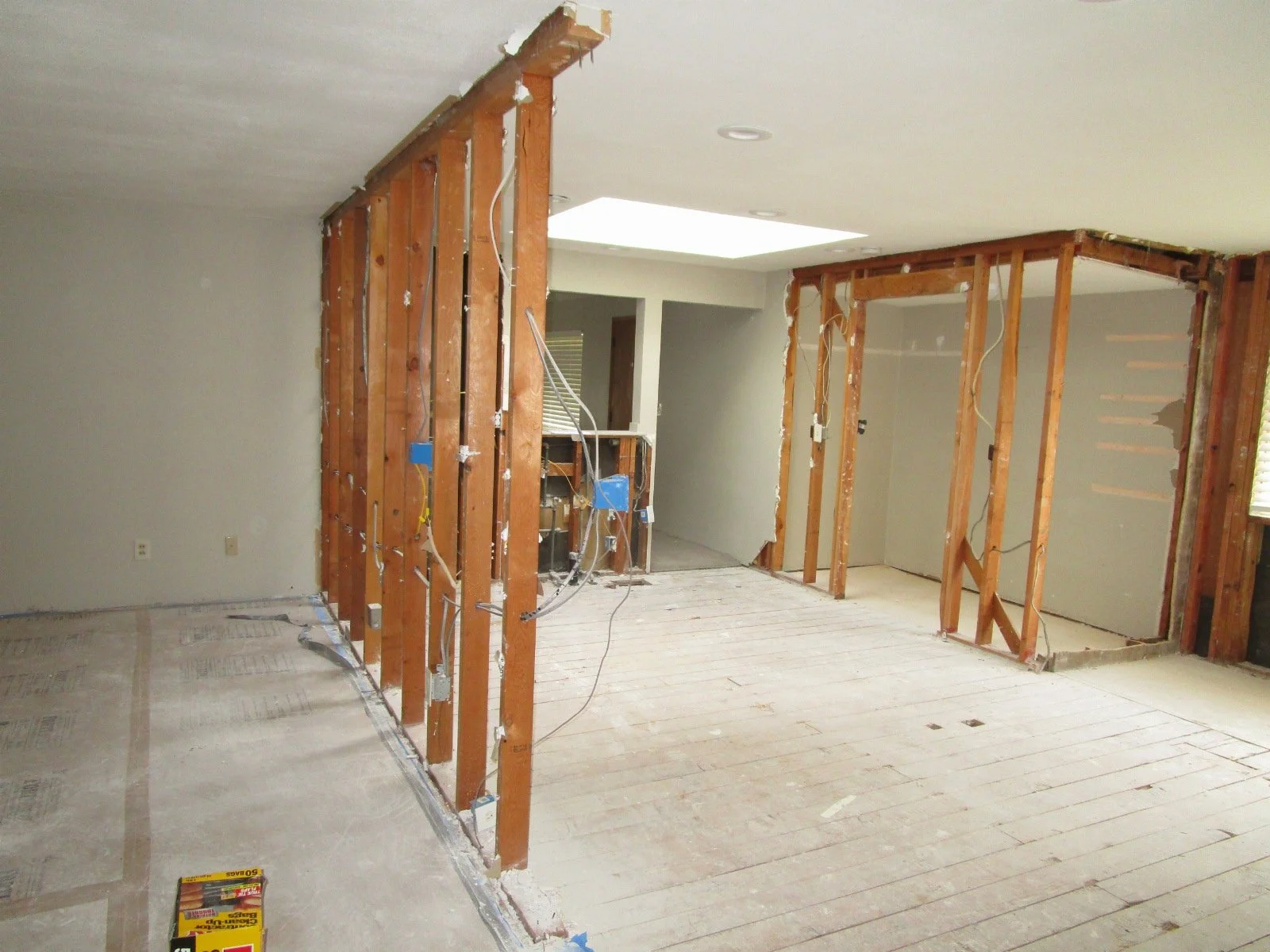

These bearing walls of exposed studs will get glu-lams over them. Then removed.

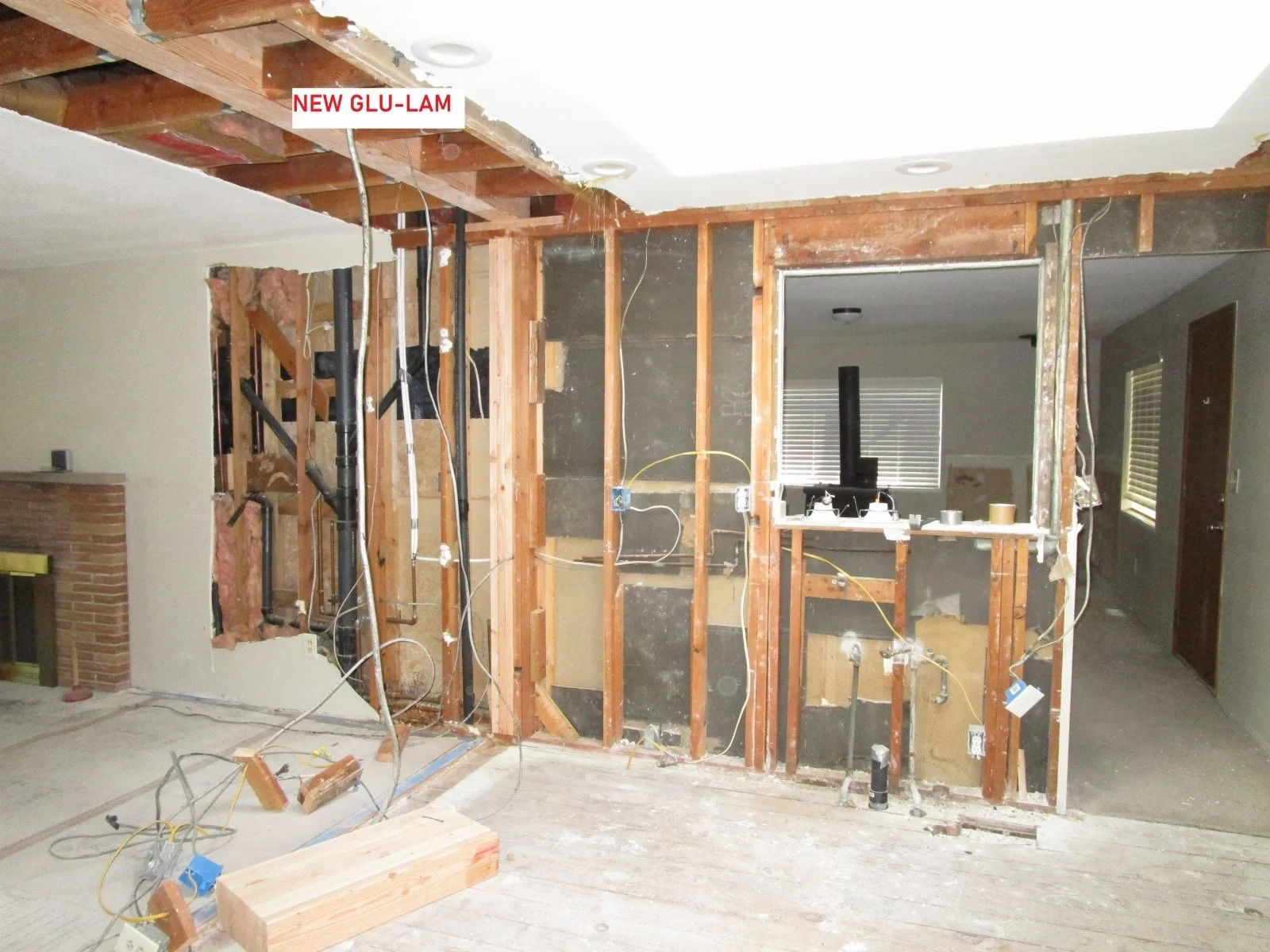

Glu-lam beams going in. Old walls gone.
View from the old Living Room all the way to the back of the house.

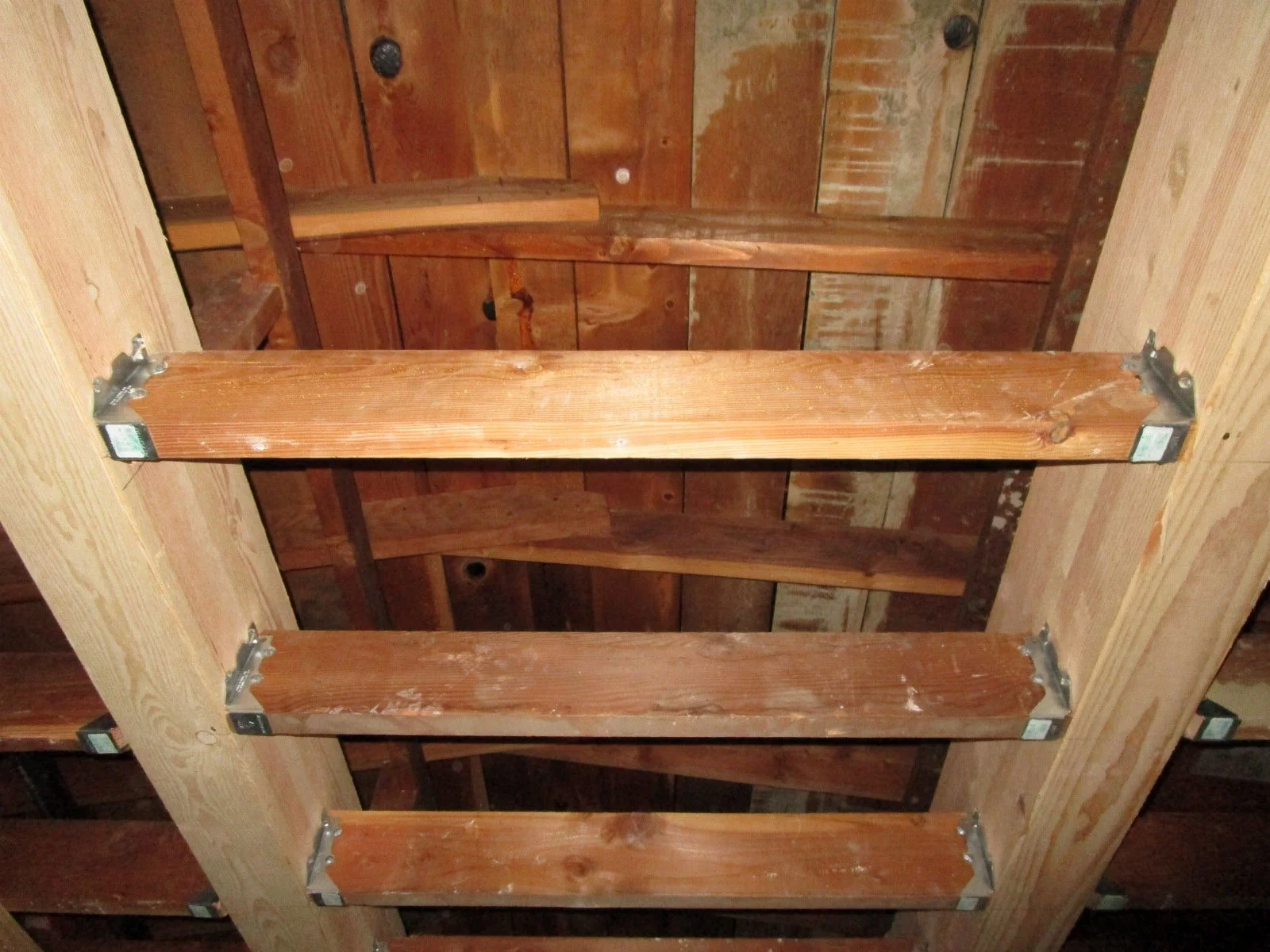

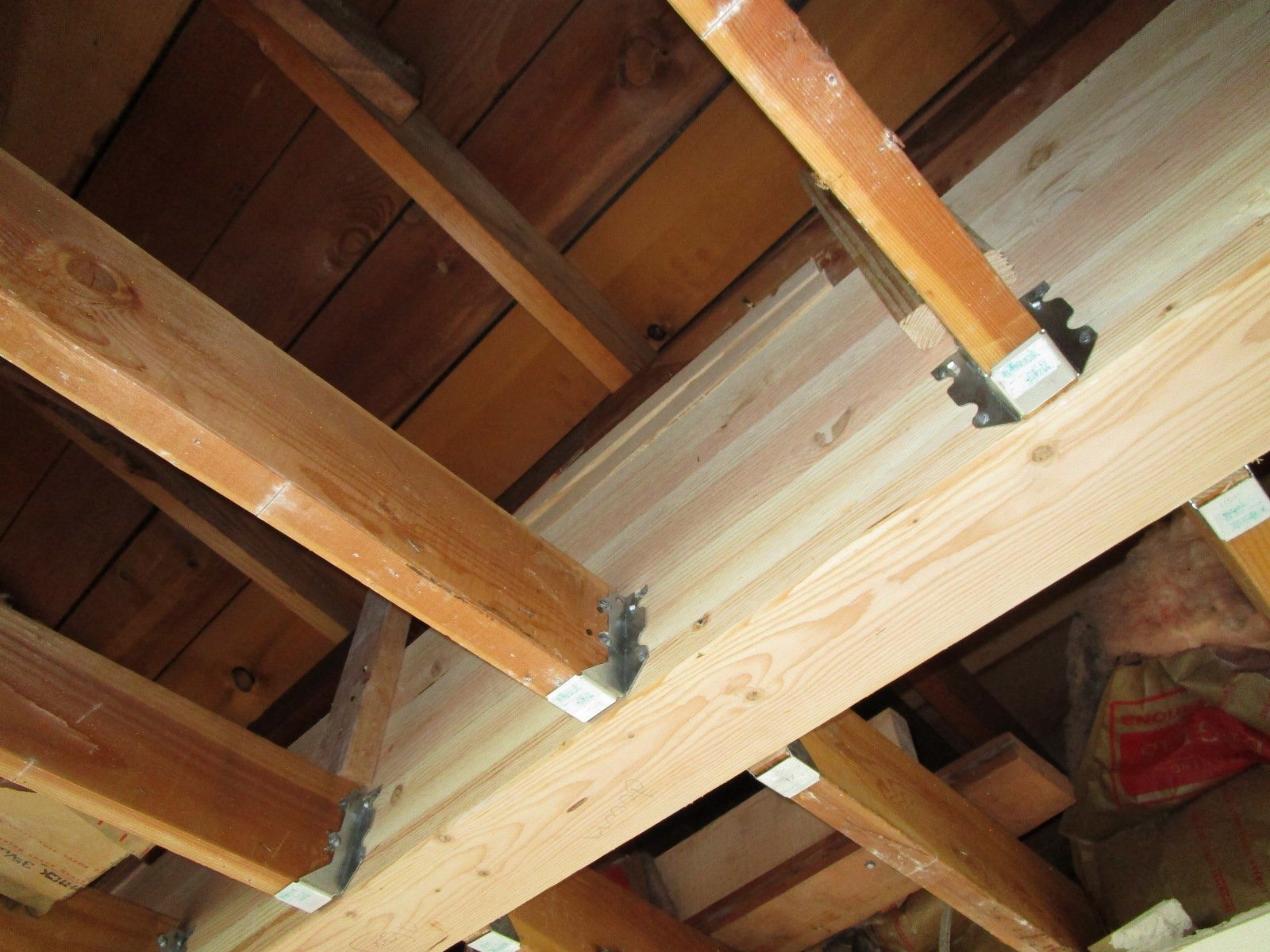

Ceiling joists get hung to the sides of the new glu lam beam.

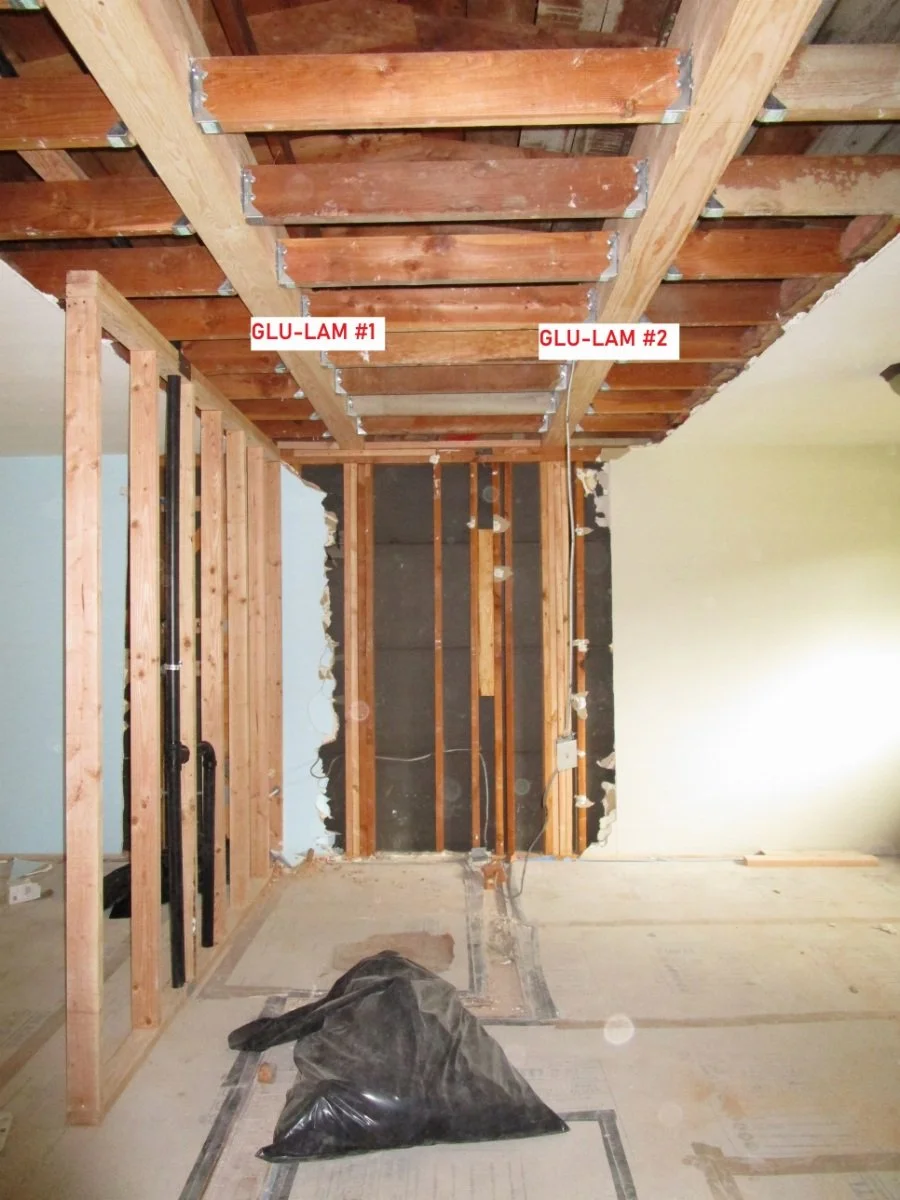

In the area where we are creating a new Master Bedroom/Bath suite. 2 glu lams needed here.
View of the outside of the house before work. Owners decided the Great Room needs more ceiling volume.

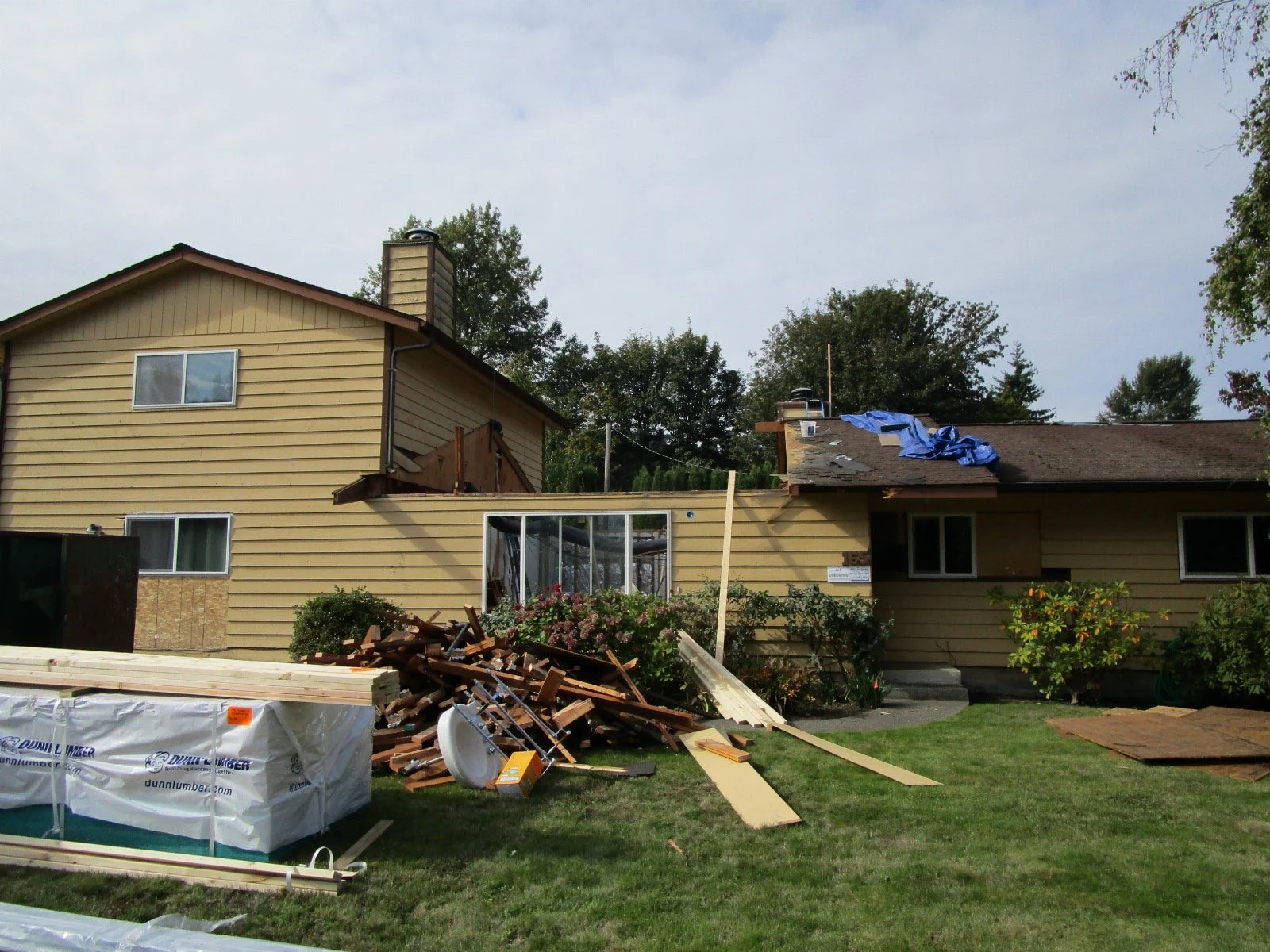

To get more interior volume we decide to remove the roof and ceiling and bring in new scissor trusses to have an interior vault.

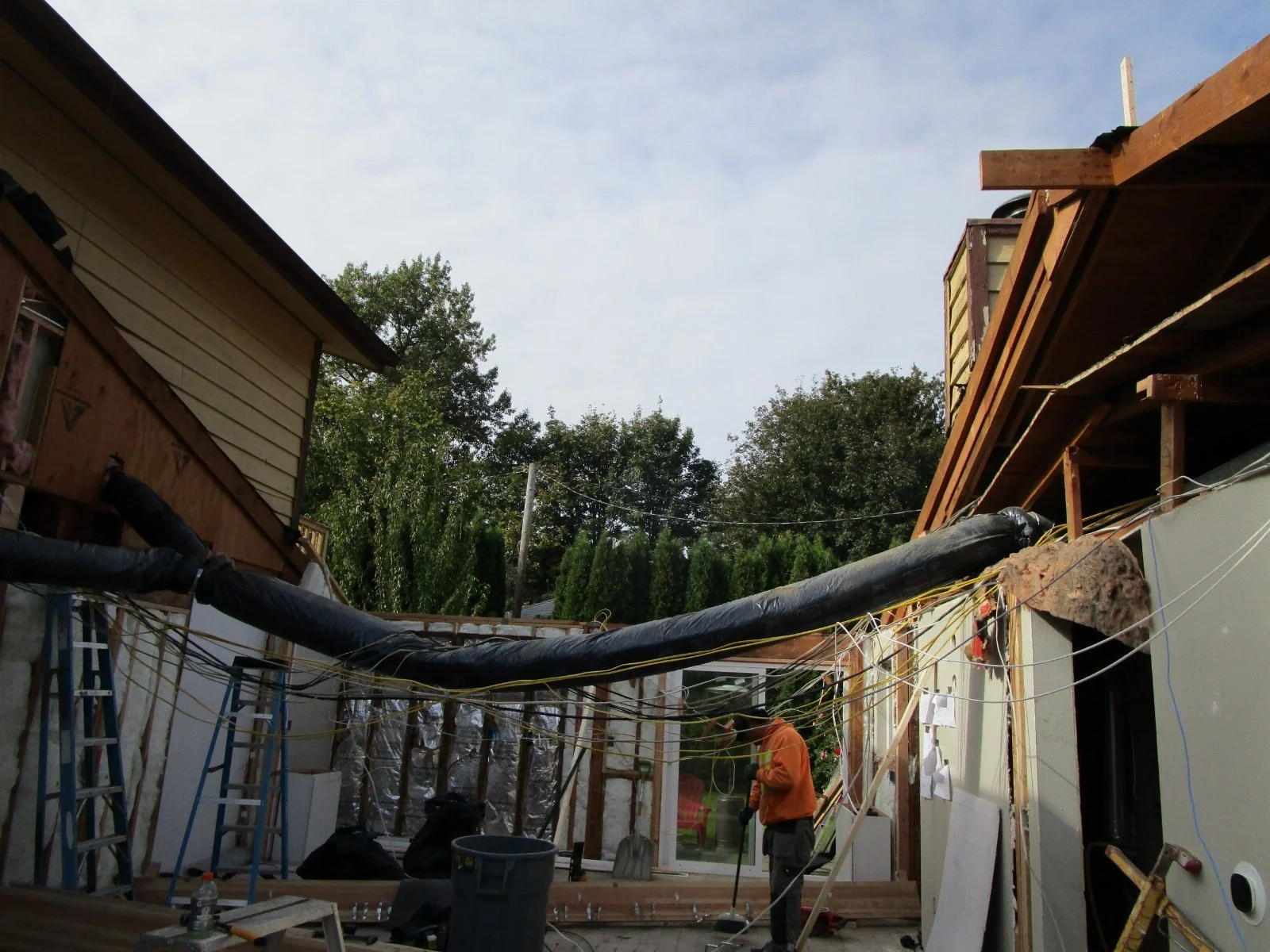

Boom, goodbye old roof.

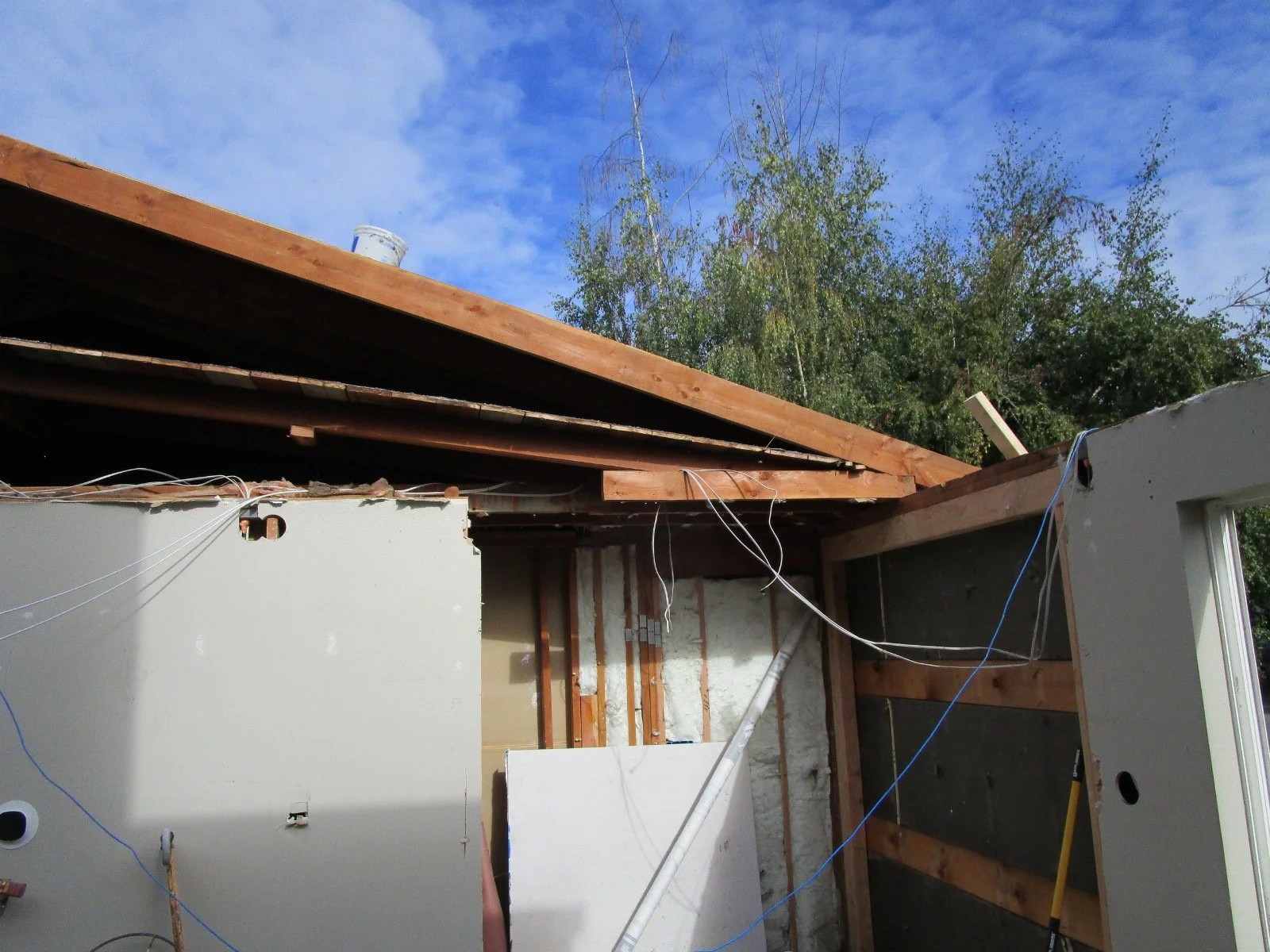

These old roof pieces need to be removed carefully due to electrical and other utilities strung in the attic.

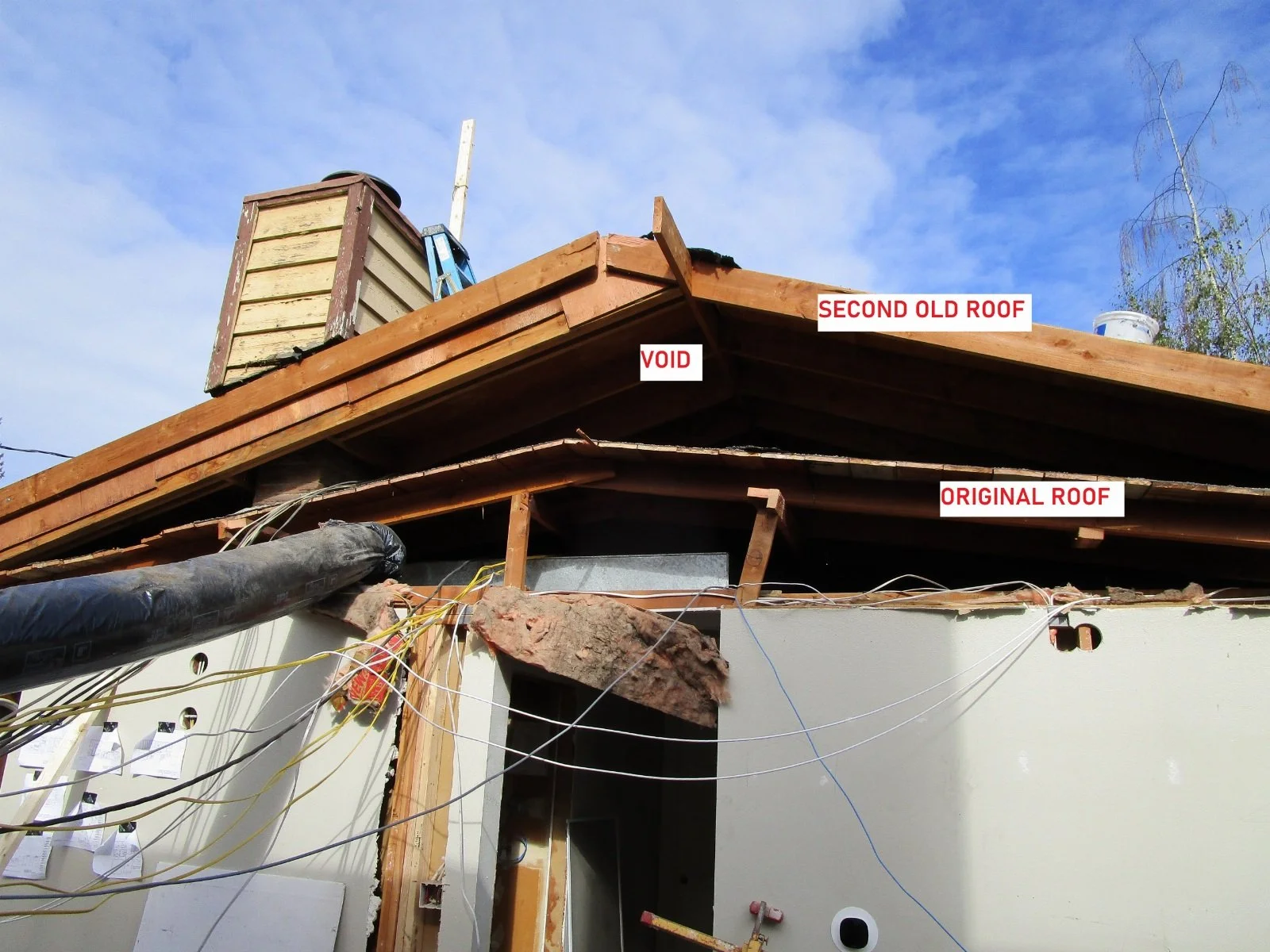

The original roof was low slope as shown. At some point when they reroofed they built a second roof over the first to get more slope. Crazy.

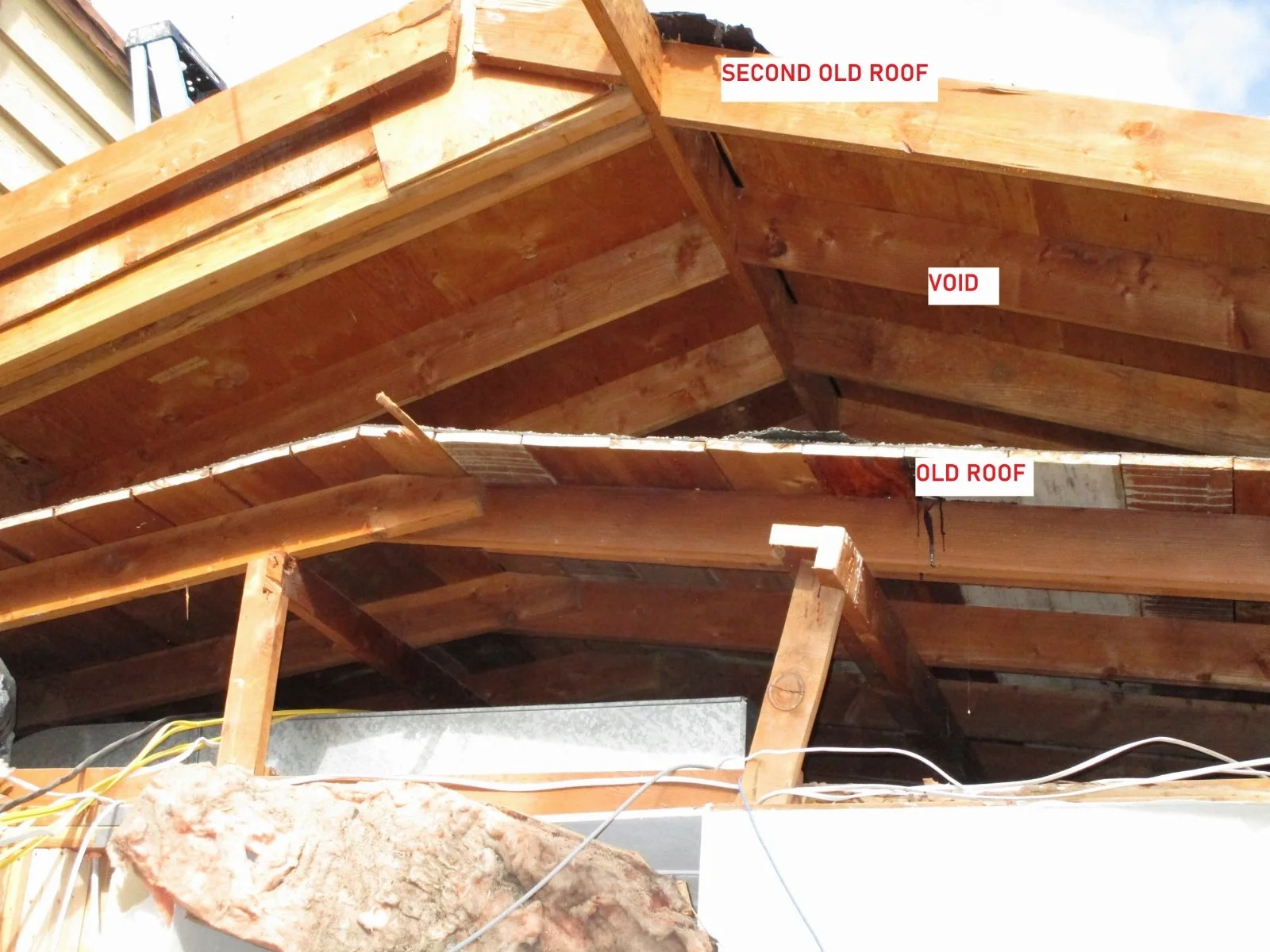

Close up of the original roof and the second old roof. Void in between.

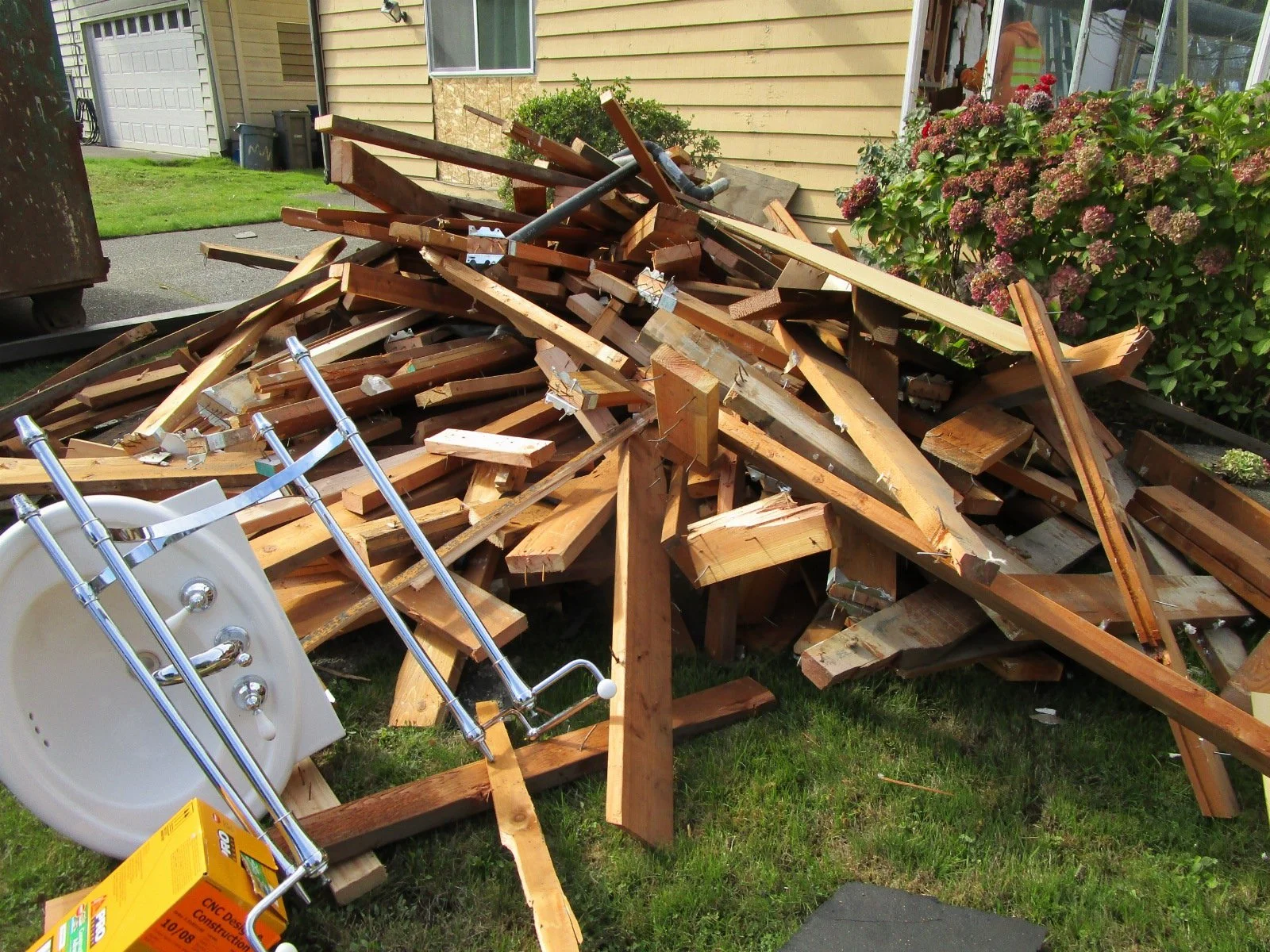

Parts of the old roof carefully cut out little by little.
Some of the old rafters I take home for firewood.

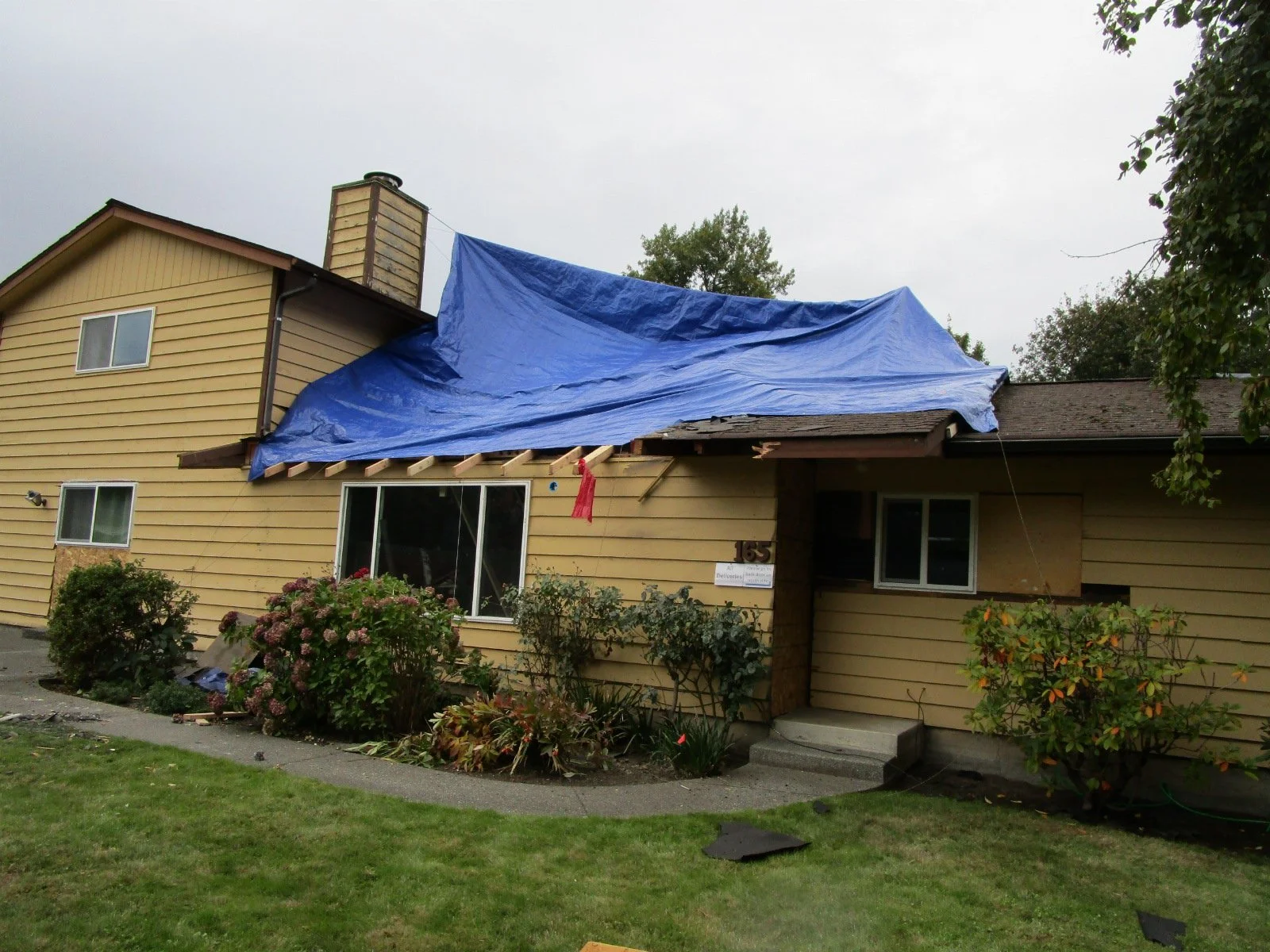

Trusses arrived and placed.
View of the new scissor trusses from the inside.

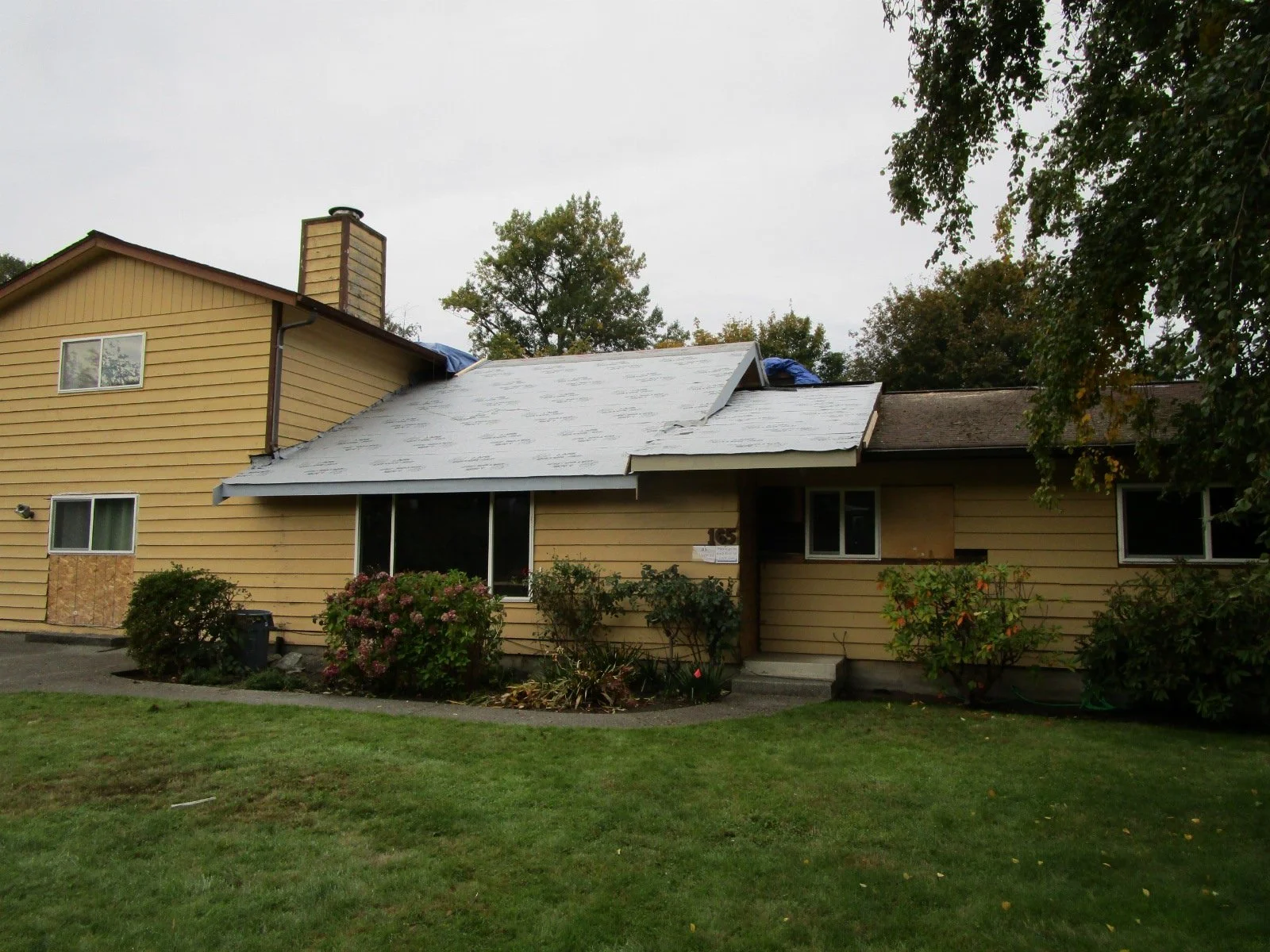

Protective roof membrane on, waiting for final comp roofing.

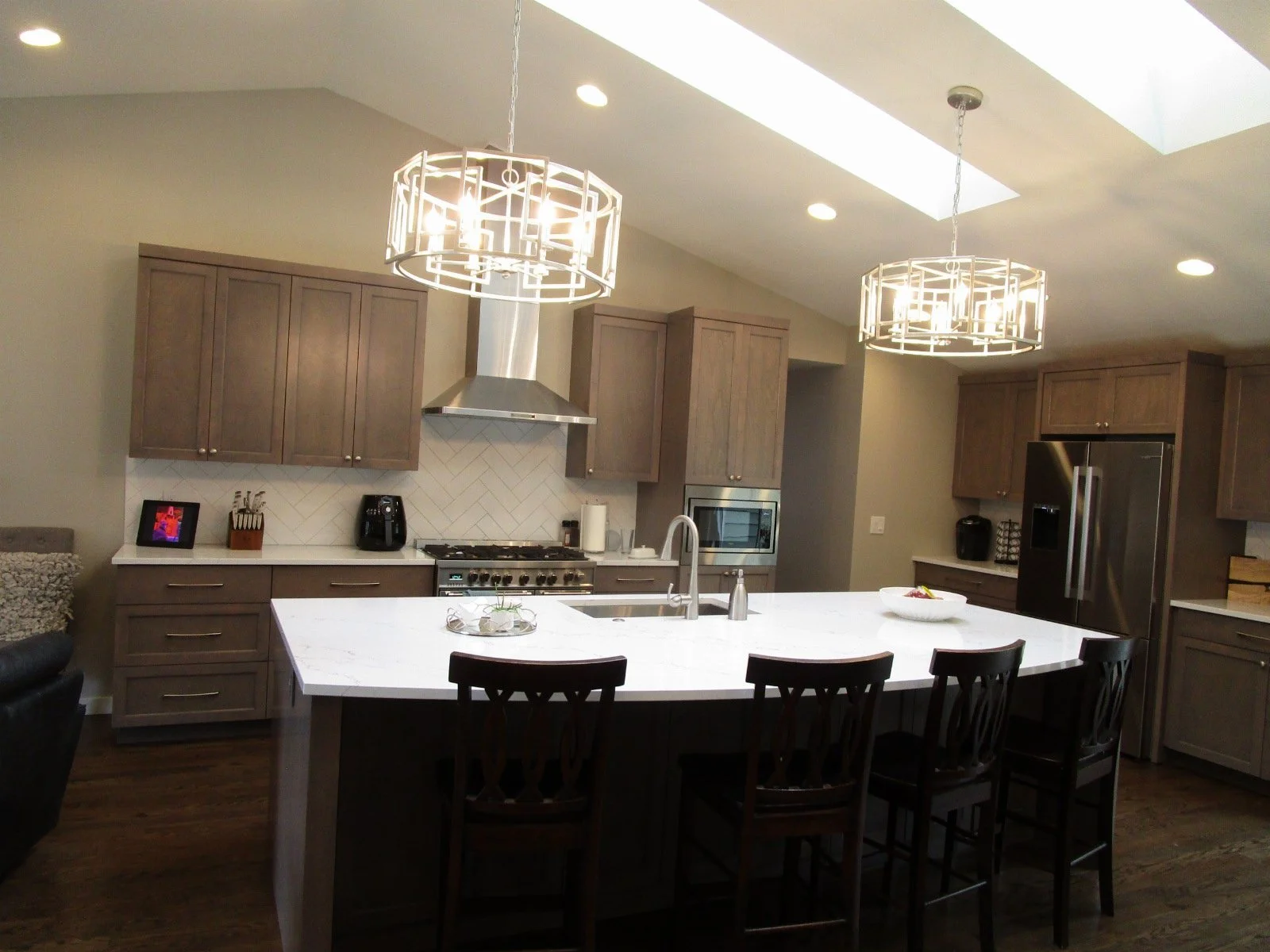

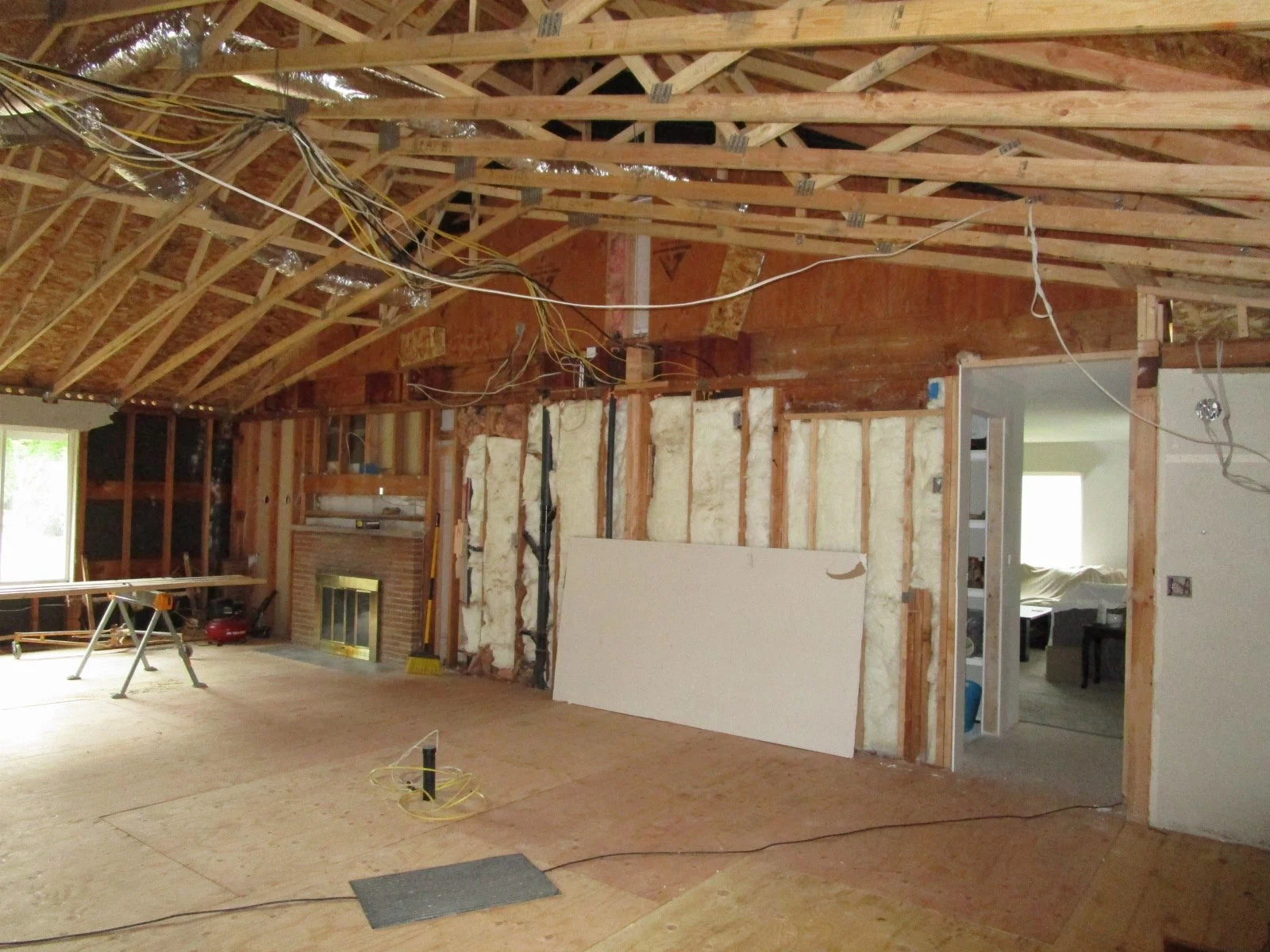

Great Room now with a vaulted ceiling. We are introducing new skylights too.

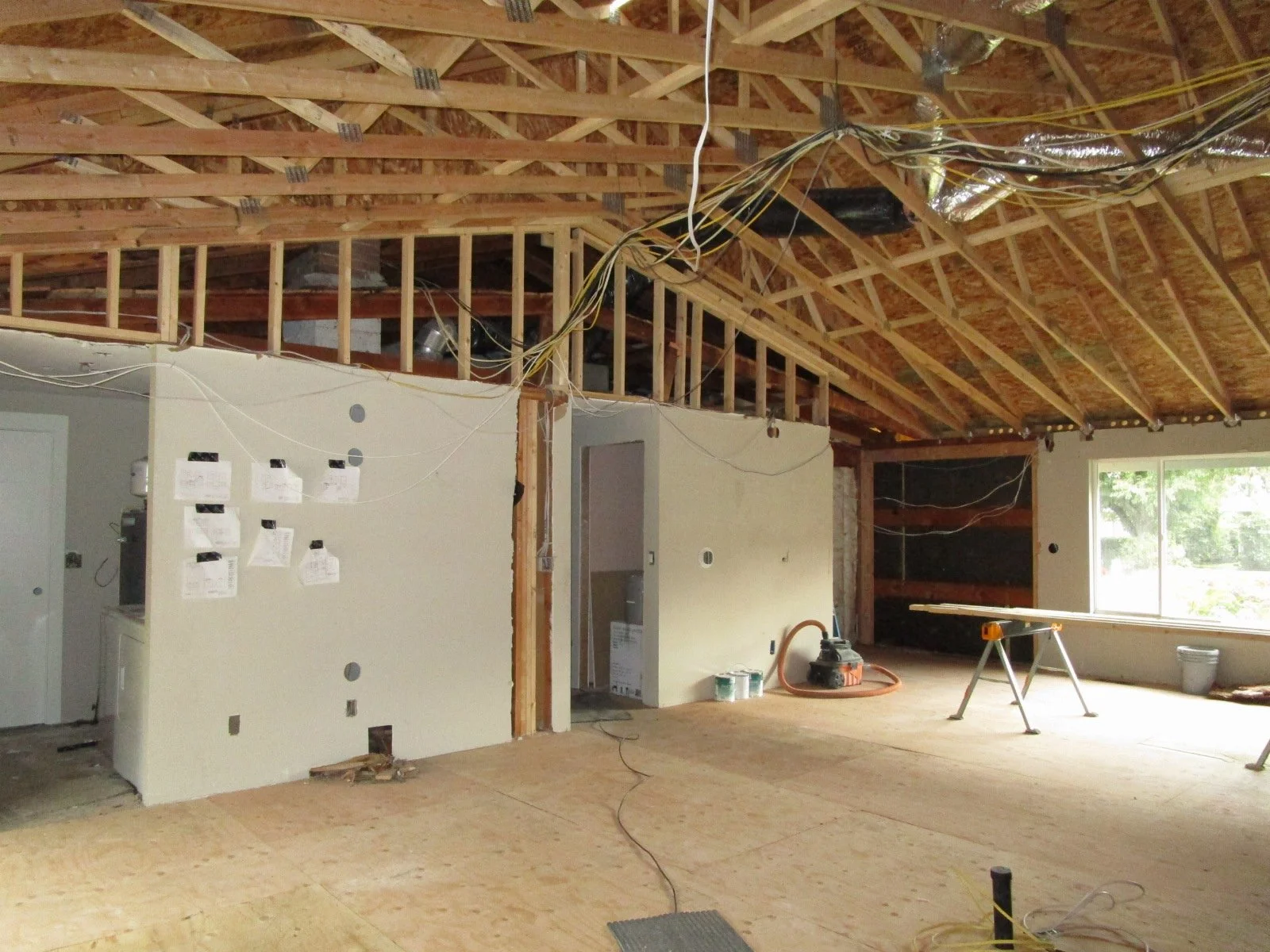

Looking from the kitchen area up to the entry (in black)

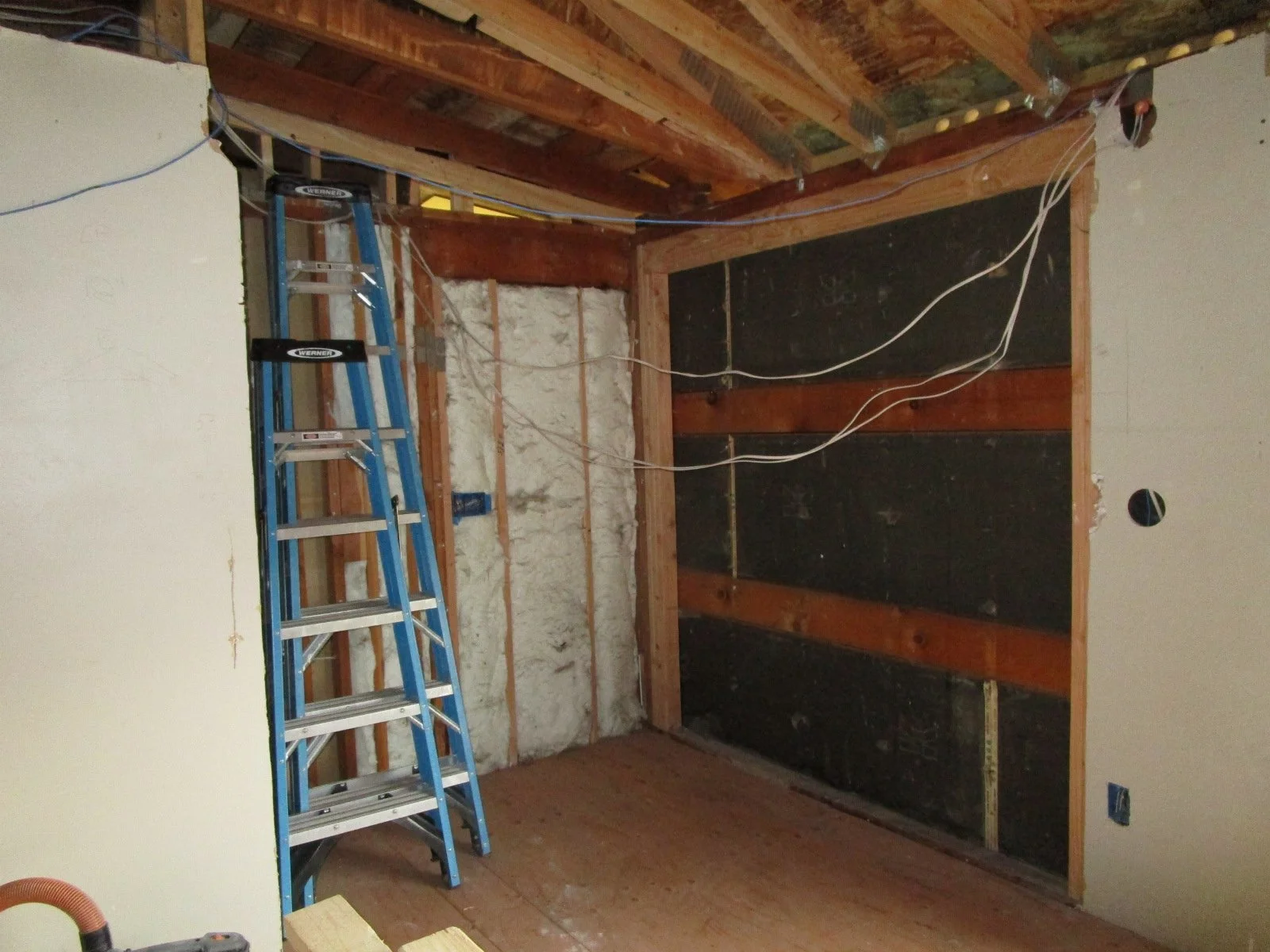

Going from a single entry door to a pair of doors.

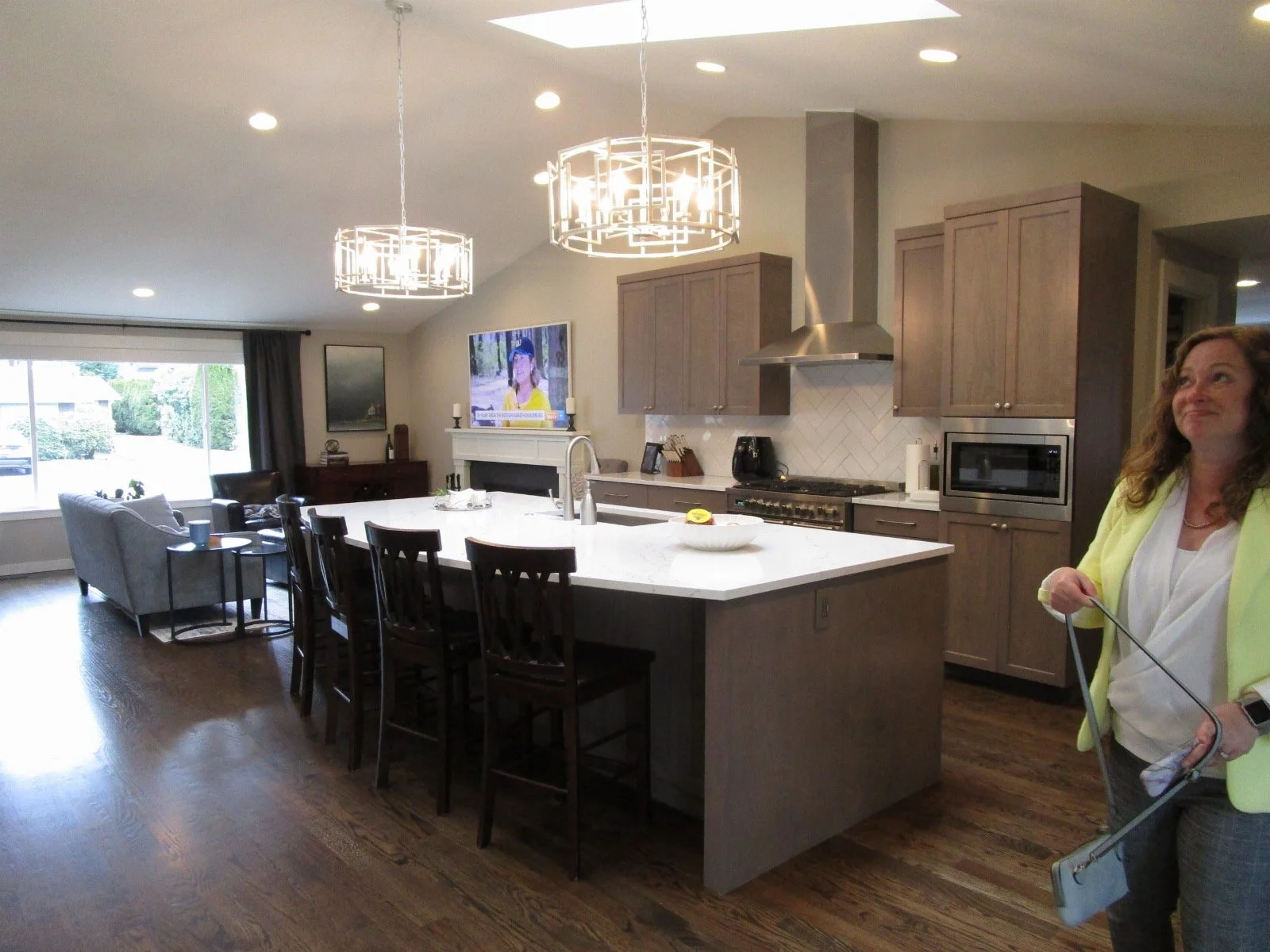

Skylights bring in a lot of light.

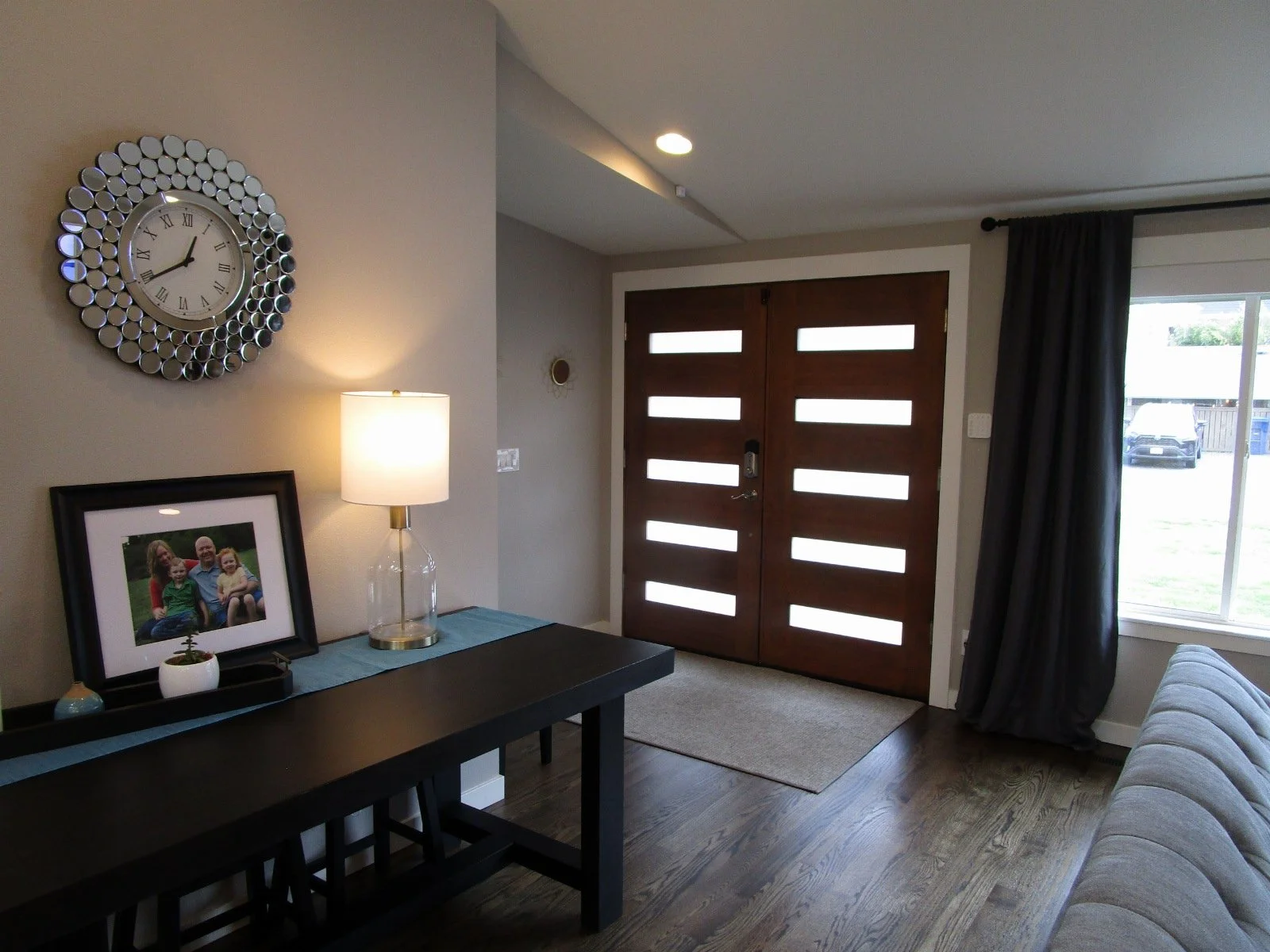

New entry doors are in.

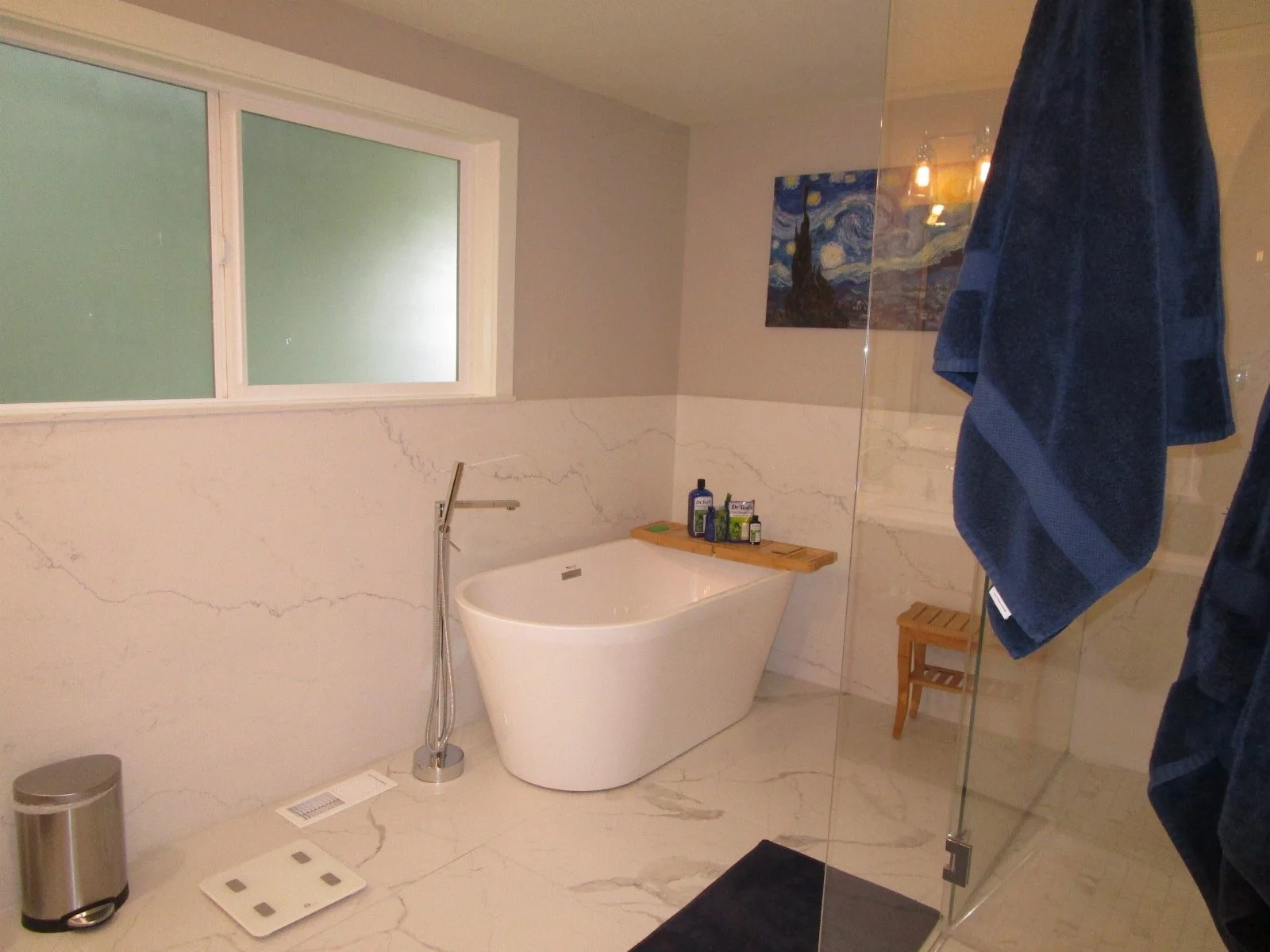

Master bath finished.

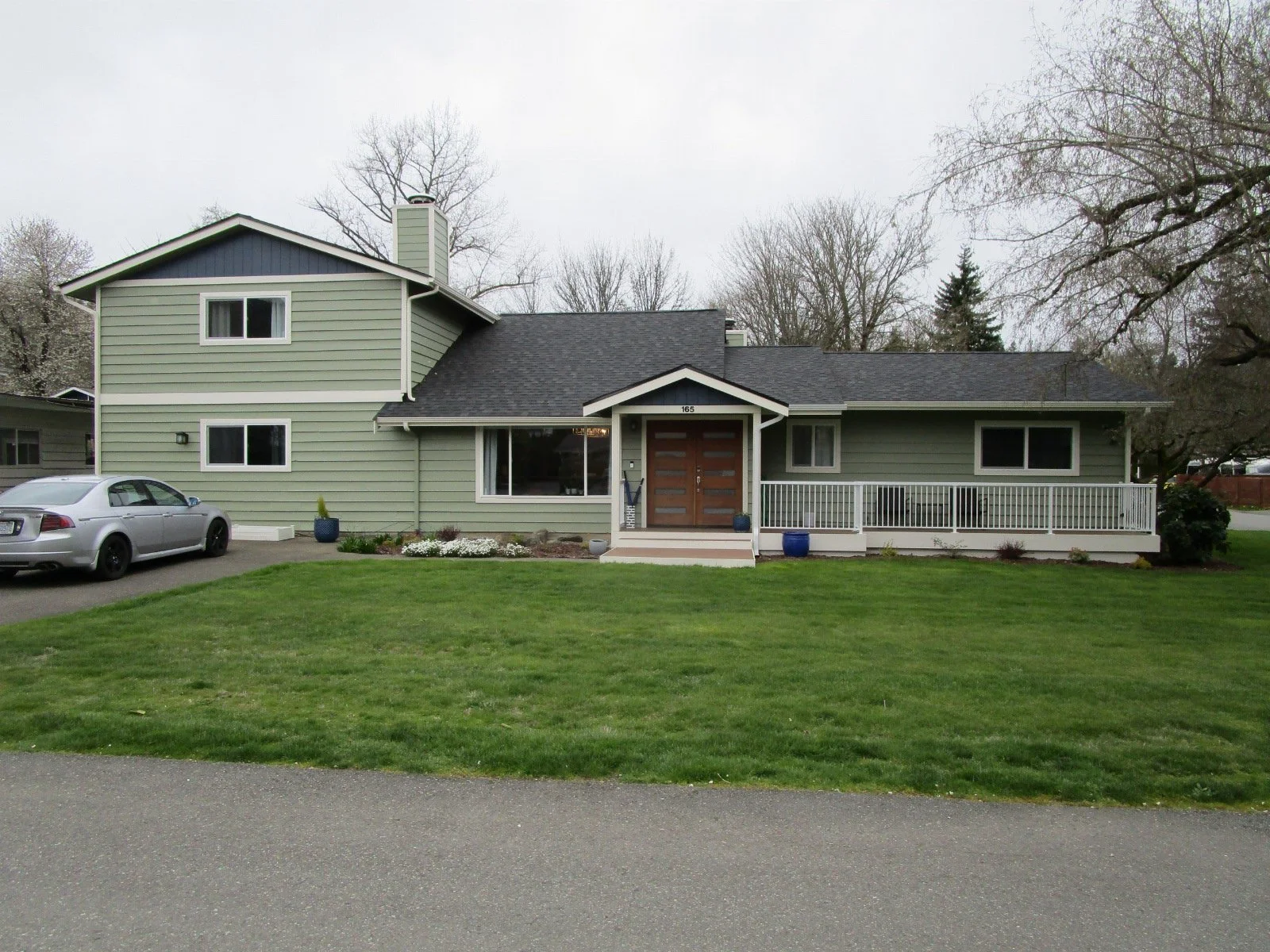

Outside we added a little covered roof at the entry.

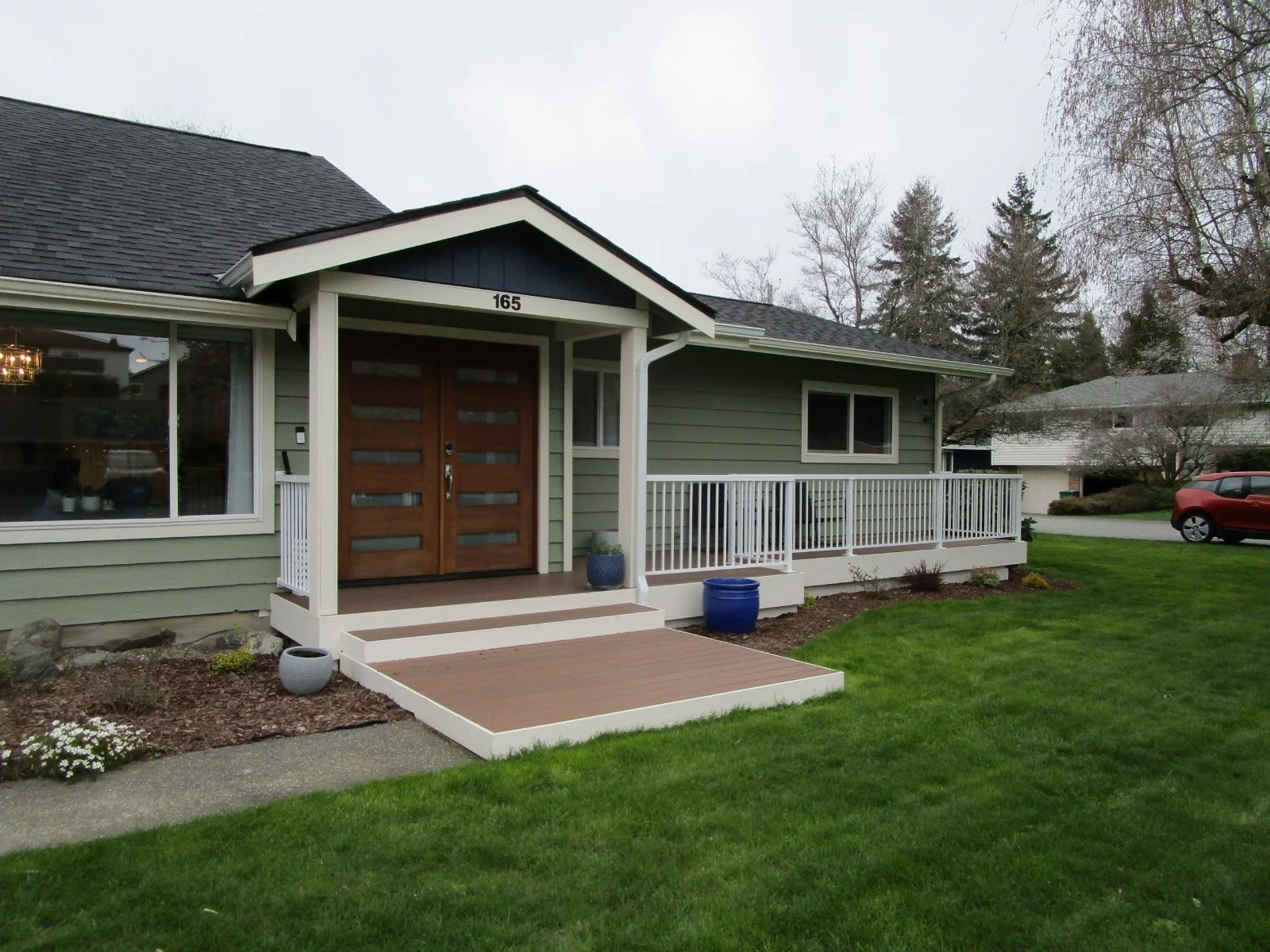

Covered entry adds some character to the front. Full house was repainted.
